Implementing Robust Scan Analytics with QR Code Generation

The QR Blind Spot: Why "Static" Codes Fail

Most businesses treat QR codes as simple stickers passive links that lead to a website. But if you aren't tracking who scanned, where they were, and what device they used, you’re flying blind. You have no way of knowing if your campaign in London is outperforming New York.

At Stacklyn Labs, we transform QR codes into intelligent tracking beacons. By using Next.js Edge Middleware, we capture real-time telemetry giving you enterprise-grade attribution before the user even sees your landing page.

Handling Edge Cases: Bot Filtering and Collision

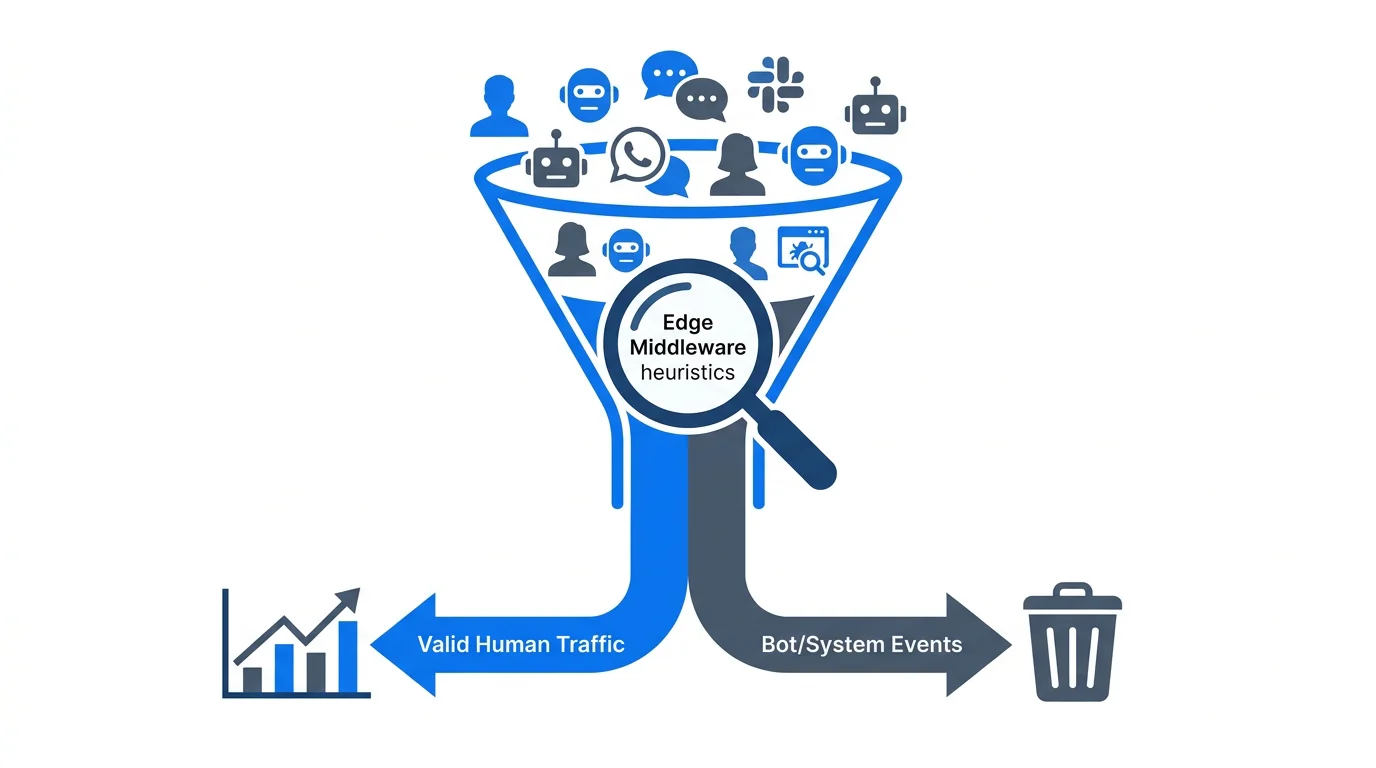

Not every "Scan" is a human. Messaging apps like WhatsApp or Slack often send "Preview Bots" to scrape your URL title and image the moment a QR code link is shared. If you count these as real customer interest, your conversion metrics will be wildly inflated.

Defensive Implementation: We implement a strict User-Agent filter and a shared-IP rate limiter. If we detect five scans from the same IP in three seconds or from a known crawler string like Facebot we log these as "System Events" and exclude them from the primary marketing dashboard.

// Next.js: Bot Filtering in Edge Middleware
const BANNED_UA = ['WhatsApp', 'TelegramBot', 'Facebot', 'Twitterbot'];

function isHumanScanner(req: NextRequest): boolean {
  const ua = req.headers.get('user-agent');
  if (!ua) return false;

  // Check against known link previewer bots
  if (BANNED_UA.some(bot => ua.includes(bot))) return false;

  // Basic rate-limiting for IP collisions
  if (isRateLimited(req.ip)) return false;

  return true;
}

Performance Deep Dive: Sub-50ms Redirect Latency

If a user scans a QR code and has to wait 3 seconds for the redirect to load, they will bounce. To achieve "instant" redirects, we use Edge Middleware with SWR (Stale-While-Revalidate). We cache the campaign destination at the edge (PoP) for 5 minutes. This ensures that 99% of users are redirected in under 50ms, regardless of how slow your primary database is.

Telemetry Decoupling: We never "Await" the database log during the user's request. We use the waitUntil() hook to push the scan telemetry to our analytics queue in the background, allowing the HTTP 302 Redirect to fire immediately.

Architecture: The Intelligent Tracking Stack

A production QR engine requires four distinct layers:

Production Strategy: Load Testing the Redirect Engine

Physical events (like a billboard at a stadium) can trigger massive traffic spikes. We use k6 or Artillery to simulate 1,000 requests per second to our edge middleware, ensuring the system doesn't hit memory limits or database connection pools during a "Super Bowl" scenario.

// k6: Load testing the redirect endpoint
import http from 'k6/http';
import { sleep } from 'k6';

export const options = {
  vus: 100, // 100 Concurrent Virtual Users
  duration: '30s',
};

export default function () {
  http.get('https://your-app.com/qr/CAMPAIGN_ID_123');
  sleep(0.1); // Simulate organic scan frequency
}

Conclusion

Data-driven decisions shouldn't stop at your website's URL. By implementing robust scan analytics, you bridge the gap between physical and digital marketing. At Stacklyn Labs, we build the bridges that turn every physical interaction into a measurable data point for your enterprise.
